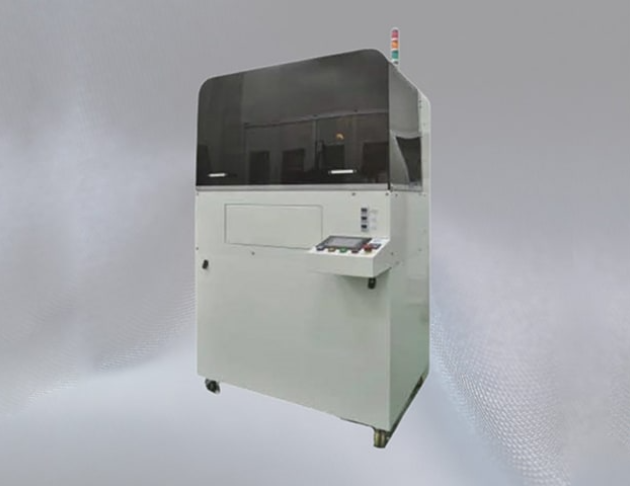

全自動貼片機(貼模機) / Automatic Wafer Mounter
Automatic Wafer Mounter
商品簡述：
Wafer & Substrate mounter, researched and developed by CTIC and PMC, realizes the localization of high-precision packaging equipment, customized design, suitable for wafer fabrication and other process applications
產品規格
左右尚有資訊 | 項目 Item | 描述 Description |
| 晶圓尺寸Wafer size | 8“、12“ 兼容 |
| 治具框規格Frame specification | 2-12-1 ( 212*194*1.2t) |
| 膠帶規格 Tape specification | Blue、UV、Pre-cut tape |
| 膠帶間距 Tape interval limit | 30mm |
| 介面 Interface | 人機介面 Human machine interface |
| 抗靜電Anti static | 靜電消除器Static eliminator |
| 工作檯面溫度設定 Table temperature setting | 0℃〜80℃ |
| 電源Power source | 交流電AC 220V |
| 壓力Pressure | 5kg / cm² |
| 重量Weight | 200公斤 |
| 尺寸Dimensions | 長1110*寬1050*高1760mm |
選配裝置Customize option:
- 全自動上下料。
Full-auto load unload - 機器手臂模組: 晶圓裝載盒、晶圓校準器、晶圓傳送手臂、治具框裝載盒、治具框傳送。
Robots module: Wafer cassette loading、Wafer aligner、Wafer transfer robot、Frame loading、Frame transfer - 條碼設備模組 / 晶圓ID辨識。
Barcode equipment module / Wafer ID reader
